規格型號：13220156
頻率：28.63636M
尺寸：5032mm
PDF
產品描述：AA-28.63636MAGK-T,5032黑色面陶瓷晶振,TXC車載電子設備晶振,精準的28.63636MHz頻率信號為車載多媒體,車聯網模塊提供同步時鐘支持,搭配高機械強度與抗熱沖擊能力,可適應汽車啟停,路況顛簸等動態工況.

AA-28.63636MAGK-T,5032黑色面陶瓷晶振,TXC車載電子設備晶振

作為臺灣晶技(TXC)專為車載場景打造的核心時頻器件,AA-28.63636MAGK-T晶振以5032黑色陶瓷貼片封裝為載體,實現小型化與高可靠性的完美平衡.80歐姆等效串聯電阻與20pF負載電容優化設計,確保信號傳輸高效低耗,基諧工作模式進一步提升頻率輸出的穩定性.產品符合RoHS環保標準與無鉛要求,適配自動化貼片工藝,適配車載藍牙,遠程鑰匙等高頻交互模塊,為車載無線通信的流暢性提供時鐘保障.

AA-28.63636MAGK-T,5032黑色面陶瓷晶振,TXC車載電子設備晶振

原廠型號 Originalmodel：	AA-28.63636MAGK-T	品牌brand：	TXC
品牌brand：	TXC臺灣進口晶振	高度PackageHeight：	1.2mm
型號名稱 Modelname：	AA	溫度OperatingTemperature	-40+125℃
Type系列：	MHz Crystal	腳位Termination：	2-pad
頻率 frequency：	28.63636M	封裝類型PackageType：	2-smd
frequencytolerance頻率容差	30PP	最小包裝數MPQ：	1000
Loadcapacitance 負載電容	20PF	Packaging 包裝	TapeandReel

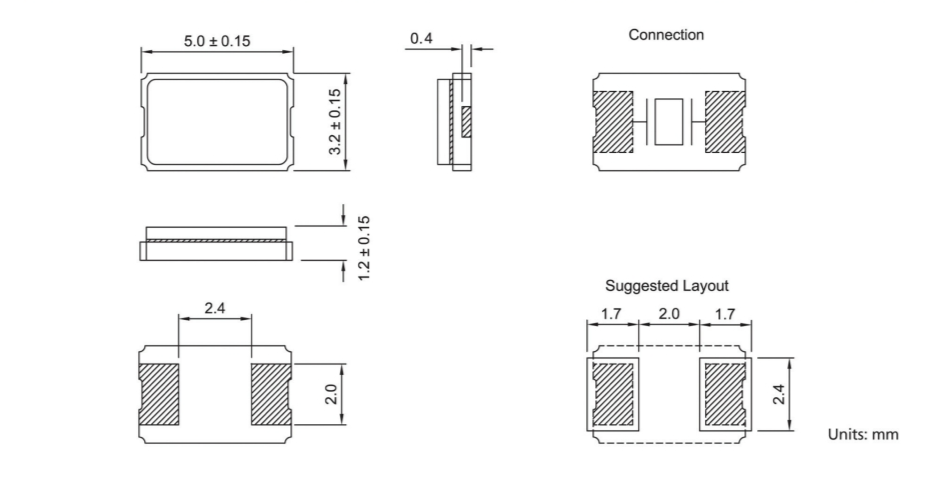

Size/Dimension尺寸	5032mm	安裝方式 Installation：	Surfacemount

AA-28.63636MAGK-T,5032黑色面陶瓷晶振,TXC車載電子設備晶振

7XZ-32.768KBE-T	TXC CORPORATION	7XZ	XO (Standard)	32.768 kHz	CMOS	3.3V	±50ppm
7Z-38.400MBG-T	TXC CORPORATION	7Z	TCXO	38.4 MHz	Clipped Sine Wave	3.3V	±500ppb
7Z-26.000MBG-T	TXC CORPORATION	7Z	TCXO	26 MHz	Clipped Sine Wave	3.3V	±500ppb
CX-100.000MBE-T	TXC CORPORATION	CX	XO (Standard)	100 MHz	HCSL	3.3V	±50ppm
7X-50.000MBE-T	TXC CORPORATION	7X	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm
7C-25.000MBE-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS	3.3V	±50ppm
7C-40.000MBE-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS	3.3V	±50ppm
8W-24.000MBE-T	TXC CORPORATION	8W	XO (Standard)	24 MHz	CMOS	3.3V	±50ppm
7C-25.000MCB-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS	2.5V	±50ppm
7C-26.000MBB-T	TXC CORPORATION	7C	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm
7C-28.63636MBB-T	TXC CORPORATION	7C	XO (Standard)	28.63636 MHz	CMOS	3.3V	±50ppm
7X-19.200MBA-T	TXC CORPORATION	7X	XO (Standard)	19.2 MHz	CMOS	3.3V	±25ppm
8WE-33.333MBM-T	TXC CORPORATION	8WE	XO (Standard)	33.333 MHz	CMOS (Low EMI)	3.3V	±50ppm
7X-26.000MBA-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS	3.3V	±25ppm
8WE-24.000MDM-T	TXC CORPORATION	8WE	XO (Standard)	24 MHz	CMOS (Low EMI)	1.8V	±50ppm
7X-26.000MBB-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm
7X-48.000MBB-T	TXC CORPORATION	7X	XO (Standard)	48 MHz	CMOS	3.3V	±50ppm
AU-12.288MBE-T	TXC CORPORATION	AU	XO (Standard)	12.288 MHz	CMOS	3.3V	±50ppm
AU-24.000MBE-T	TXC CORPORATION	AU	XO (Standard)	24 MHz	CMOS	3.3V	±50ppm
AU-50.000MBE-T	TXC CORPORATION	AU	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm
7C-26.000MBA-T	TXC CORPORATION	7C	XO (Standard)	26 MHz	CMOS	3.3V	±25ppm
7C-25.000MBA-T	TXC CORPORATION	7C	XO (Standard)	25 MHz	CMOS	3.3V	±25ppm
BX-100.000MBE-T	TXC CORPORATION	BX	XO (Standard)	100 MHz	HCSL	3.3V	±50ppm
7N-20.000MBP-T	TXC CORPORATION	7N	TCXO	20 MHz	CMOS	3.3V	±280ppb
7N-12.800MBP-T	TXC CORPORATION	7N	TCXO	12.8 MHz	CMOS	3.3V	±280ppb
7X-25.000MBE-T	TXC CORPORATION	7X	XO (Standard)	25 MHz	CMOS	3.3V	±50ppm
7C-4.000MBB-T	TXC CORPORATION	7C	XO (Standard)	4 MHz	CMOS	3.3V	±50ppm
8WE-25.000MDM-T	TXC CORPORATION	8WE	XO (Standard)	25 MHz	CMOS (Low EMI)	1.8V	±50ppm
8WE-38.400MDM-T	TXC CORPORATION	8WE	XO (Standard)	38.4 MHz	CMOS (Low EMI)	1.8V	±50ppm
8NE-25.000MBM-T	TXC CORPORATION	8NE	XO (Standard)	25 MHz	CMOS (Low EMI)	3.3V	±50ppm
8WE-24.000MBM-T	TXC CORPORATION	8WE	XO (Standard)	24 MHz	CMOS (Low EMI)	3.3V	±50ppm
AU-25.000MBE-T	TXC CORPORATION	AU	XO (Standard)	25 MHz	CMOS	3.3V	±50ppm
AU-26.000MBE-T	TXC CORPORATION	AU	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm
7Z-26.000MDS-T	TXC CORPORATION	7Z	VCTCXO	26 MHz	Clipped Sine Wave	1.8V	±2ppm
7Z-26.000MDG-T	TXC CORPORATION	7Z	TCXO	26 MHz	Clipped Sine Wave	1.8V	±500ppb
BR-61.4400MBE-T	TXC CORPORATION	BR	VCXO	61.44 MHz	CMOS	3.3V	±50ppm
8WE-33.333MDM-T	TXC CORPORATION	8WE	XO (Standard)	33.333 MHz	CMOS (Low EMI)	1.8V	±50ppm
8NE-24.576MDM-T	TXC CORPORATION	8NE	XO (Standard)	24.576 MHz	CMOS (Low EMI)	1.8V	±50ppm
8WE-30.000MBM-T	TXC CORPORATION	8WE	XO (Standard)	30 MHz	CMOS (Low EMI)	3.3V	±50ppm
8NE-24.000MBM-T	TXC CORPORATION	8NE	XO (Standard)	24 MHz	CMOS (Low EMI)	3.3V	±50ppm
8WE-27.000MDM-T	TXC CORPORATION	8WE	XO (Standard)	27 MHz	CMOS (Low EMI)	1.8V	±50ppm
TD-7.3728MBD-T	TXC CORPORATION	TD	XO (Standard)	7.3728 MHz	CMOS	3.3V	±25ppm
7XZ-32.768KBA-T	TXC CORPORATION	7XZ	XO (Standard)	32.768 kHz	CMOS	3.3V	±25ppm
7XZ-32.768KDA-T	TXC CORPORATION	7XZ	XO (Standard)	32.768 kHz	CMOS	1.8V	±25ppm
7W-36.000MBB-T	TXC CORPORATION	7W	XO (Standard)	36 MHz	CMOS	3.3V	±50ppm
8NE-25.000MDM-T	TXC CORPORATION	8NE	XO (Standard)	25 MHz	CMOS (Low EMI)	1.8V	±50ppm
7X-38.400MBE-T	TXC CORPORATION	7X	XO (Standard)	38.4 MHz	CMOS	3.3V	±50ppm
7W-10.000MBE-T	TXC CORPORATION	7W	XO (Standard)	10 MHz	CMOS	3.3V	±50ppm
7X-30.000MBE-T	TXC CORPORATION	7X	XO (Standard)	30 MHz	CMOS	3.3V	±50ppm
7X-26.000MBE-T	TXC CORPORATION	7X	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm
7C-50.000MBE-T	TXC CORPORATION	7C	XO (Standard)	50 MHz	CMOS	3.3V	±50ppm
8W-26.000MBE-T	TXC CORPORATION	8W	XO (Standard)	26 MHz	CMOS	3.3V	±50ppm
8W-13.000MBE-T	TXC CORPORATION	8W	XO (Standard)	13 MHz	CMOS	3.3V	±50ppm
7X-30.000MBB-T	TXC CORPORATION	7X	XO (Standard)	30 MHz	CMOS	3.3V	±50ppm
8W-20.000MBE-T	TXC CORPORATION	8W	XO (Standard)	20 MHz	CMOS	3.3V	±50ppm
7C-40.000MCB-T	TXC CORPORATION	7C	XO (Standard)	40 MHz	CMOS	2.5V	±50ppm
7C-24.576MBA-T	TXC CORPORATION	7C	XO (Standard)	24.576 MHz	CMOS	3.3V	±25ppm
8NE-24.576MBM-T	TXC CORPORATION	8NE	XO (Standard)	24.576 MHz	CMOS (Low EMI)	3.3V	±50ppm
8WE-20.000MBM-T	TXC CORPORATION	8WE	XO (Standard)	20 MHz	CMOS (Low EMI)	3.3V	±50ppm
8NE-27.000MBM-T	TXC CORPORATION	8NE	XO (Standard)	27 MHz	CMOS (Low EMI)	3.3V	±50ppm
