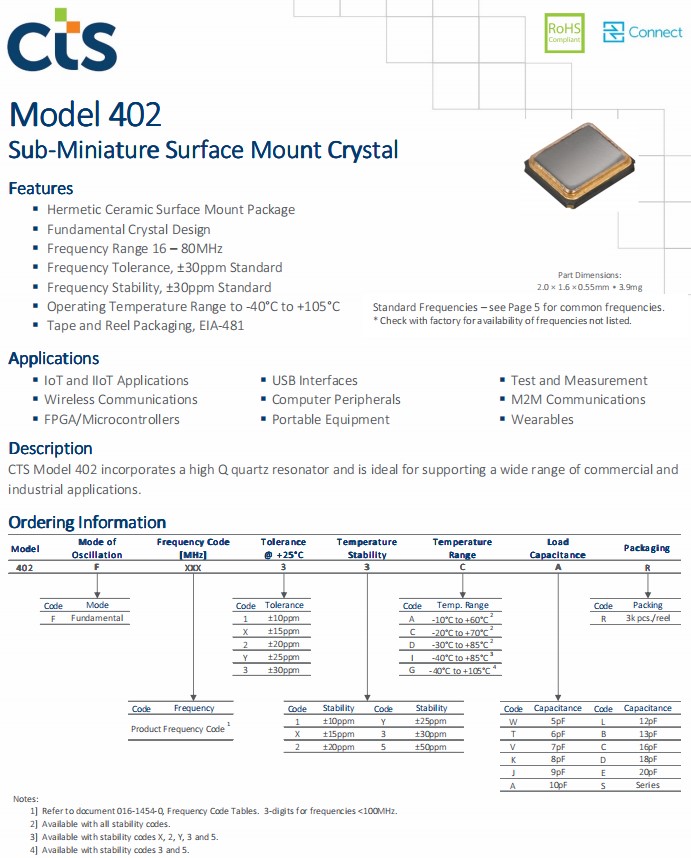

美國進口CTS西迪斯晶振Model 402系列，是一款小體積晶振尺寸2.0x1.6mm超微型表面貼裝石英晶體，四腳貼片晶振，無源晶振，石英晶振，石英晶體諧振器，無鉛環保晶振，頻率范圍：16MHz至80MHz，工作溫度范圍：-40℃至+105℃，具有超小型，輕薄型，耐熱、耐振、耐沖擊等優良的耐環境特性，滿足無鉛焊接的高溫回流溫度曲線要求，符合AEC-Q200標準。貼片晶振應用：物聯網和IIoT應用，無線通信，FPGA/微控制器，USB接口，計算機外圍設備，便攜式設備，測試和測量，M2M通信，可穿戴設備等應用。超小型表面貼裝晶體402F240XXCJR非常適用于便捷式設備應用

超小型表面貼裝晶體402F240XXCJR非常適用于便捷式設備應用
402系列晶振特點：
密封陶瓷表面安裝封裝
基本水晶設計
頻率范圍16-80MHz
頻率公差，±30ppm標準
頻率穩定性，±30ppm標準
工作溫度圍為-40°C至+105°C

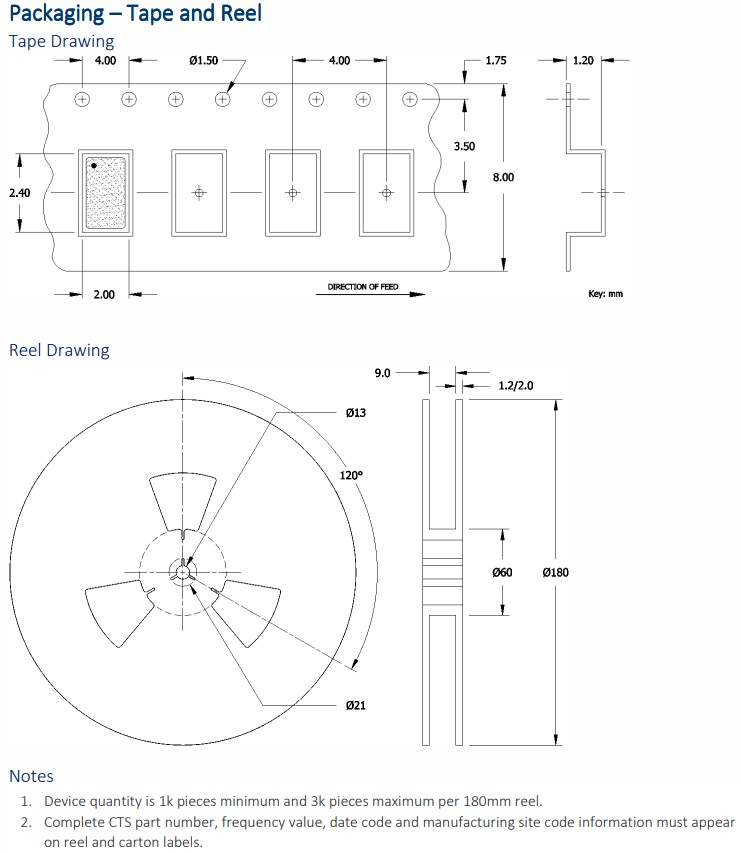

磁帶和卷軸包裝，EIA-481

原廠編碼	晶振生產廠家	型號	系列	頻率	包裝/封裝
402F2401XIAR	CTS晶振	402	MHz Crystal	24MHz	4-SMD, No Lead
402F2501XIAR	CTS晶振	402	MHz Crystal	25MHz	4-SMD, No Lead
402F27011CAR	CTS晶振	402	MHz Crystal	27MHz	4-SMD, No Lead
402F30011CAR	CTS晶振	402	MHz Crystal	30MHz	4-SMD, No Lead
402F38411CAR	CTS晶振	402	MHz Crystal	38.4MHz	4-SMD, No Lead
402F2001XIAR	CTS晶振	402	MHz Crystal	20MHz	4-SMD, No Lead
402F4001XIAR	CTS晶振	402	MHz Crystal	40MHz	4-SMD, No Lead
402F24011CAR	CTS晶振	402	MHz Crystal	24MHz	4-SMD, No Lead
402F3201XIAR	CTS晶振	402	MHz Crystal	32MHz	4-SMD, No Lead
402F32011CAR	CTS晶振	402	MHz Crystal	32MHz	4-SMD, No Lead
402F160XXCKR	CTS晶振	402	MHz Crystal	16MHz	4-SMD, No Lead
402F192XXCKR	CTS晶振	402	MHz Crystal	19.2MHz	4-SMD, No Lead
402F200XXCKR	CTS晶振	402	MHz Crystal	20MHz	4-SMD, No Lead
402F204XXCKR	進口晶振	402	MHz Crystal	20.48MHz	4-SMD, No Lead
402F240XXCKR	CTS晶振	402	MHz Crystal	24MHz	4-SMD, No Lead
402F250XXCKR	CTS晶振	402	MHz Crystal	25MHz	4-SMD, No Lead
402F260XXCKR	CTS晶振	402	MHz Crystal	26MHz	4-SMD, No Lead
402F270XXCKR	CTS晶振	402	MHz Crystal	27MHz	4-SMD, No Lead
402F271XXCKR	CTS晶振	402	MHz Crystal	27.12MHz	4-SMD, No Lead
402F300XXCKR	CTS晶振	402	MHz Crystal	30MHz	4-SMD, No Lead
402F307XXCKR	CTS晶振	402	MHz Crystal	30.72MHz	4-SMD, No Lead
402F320XXCKR	CTS晶振	402	MHz Crystal	32MHz	4-SMD, No Lead
402F360XXCKR	CTS晶振	402	MHz Crystal	36MHz	4-SMD, No Lead
402F374XXCKR	CTS晶振	402	MHz Crystal	37.4MHz	4-SMD, No Lead
402F384XXCKR	CTS晶振	402	MHz Crystal	38.4MHz	4-SMD, No Lead
402F400XXCKR	CTS晶振	402	MHz Crystal	40MHz	4-SMD, No Lead
402F160XXCJR	CTS晶振	402	MHz Crystal	16MHz	4-SMD, No Lead
402F192XXCJR	CTS晶振	402	MHz Crystal	19.2MHz	4-SMD, No Lead
402F200XXCJR	CTS晶振	402	MHz Crystal	20MHz	4-SMD, No Lead
402F204XXCJR	CTS晶振	402	MHz Crystal	20.48MHz	4-SMD, No Lead
402F240XXCJR	CTS晶振	402	MHz Crystal	24MHz	4-SMD, No Lead
402F250XXCJR	CTS晶振	402	MHz Crystal	25MHz	4-SMD, No Lead
402F260XXCJR	CTS晶振	402	MHz Crystal	26MHz	4-SMD, No Lead
402F270XXCJR	CTS晶振	402	MHz Crystal	27MHz	4-SMD, No Lead
402F271XXCJR	CTS晶振	402	MHz Crystal	27.12MHz	4-SMD, No Lead
402F300XXCJR	CTS晶振	402	MHz Crystal	30MHz	4-SMD, No Lead
402F307XXCJR	CTS晶振	402	MHz Crystal	30.72MHz	4-SMD, No Lead
402F320XXCJR	CTS晶振	402	MHz Crystal	32MHz	4-SMD, No Lead
402F360XXCJR	CTS晶振	402	MHz Crystal	36MHz	4-SMD, No Lead
402F374XXCJR	CTS晶振	402	MHz Crystal	37.4MHz	4-SMD, No Lead
402F384XXCJR	CTS晶振	402	MHz Crystal	38.4MHz	4-SMD, No Lead
402F400XXCJR	CTS晶振	402	MHz Crystal	40MHz	4-SMD, No Lead
402F160XXCAR	CTS晶振	402	MHz Crystal	16MHz	4-SMD, No Lead
402F192XXCAR	CTS晶振	402	MHz Crystal	19.2MHz	4-SMD, No Lead
402F200XXCAR	CTS晶振	402	MHz Crystal	20MHz	4-SMD, No Lead
402F204XXCAR	CTS晶振	402	MHz Crystal	20.48MHz	4-SMD, No Lead
402F240XXCAR	CTS晶振	402	MHz Crystal	24MHz	4-SMD, No Lead
402F250XXCAR	CTS晶振	402	MHz Crystal	25MHz	4-SMD, No Lead
402F260XXCAR	CTS晶振	402	MHz Crystal	26MHz	4-SMD, No Lead
402F270XXCAR	無源晶體	402	MHz Crystal	27MHz	4-SMD, No Lead
402F271XXCAR	CTS晶振	402	MHz Crystal	27.12MHz	4-SMD, No Lead
402F300XXCAR	CTS晶振	402	MHz Crystal	30MHz	4-SMD, No Lead
402F307XXCAR	CTS晶振	402	MHz Crystal	30.72MHz	4-SMD, No Lead
402F320XXCAR	CTS晶振	402	MHz Crystal	32MHz	4-SMD, No Lead
402F360XXCAR	CTS晶振	402	MHz Crystal	36MHz	4-SMD, No Lead
402F374XXCAR	CTS晶振	402	MHz Crystal	37.4MHz	4-SMD, No Lead
402F384XXCAR	CTS晶振	402	MHz Crystal	38.4MHz	4-SMD, No Lead
402F400XXCAR	CTS晶振	402	MHz Crystal	40MHz	4-SMD, No Lead
402F160XXCLR	CTS晶振	402	MHz Crystal	16MHz	4-SMD, No Lead
402F192XXCLR	CTS晶振	402	MHz Crystal	19.2MHz	4-SMD, No Lead
402F200XXCLR	CTS晶振	402	MHz Crystal	20MHz	4-SMD, No Lead
402F204XXCLR	CTS晶振	402	MHz Crystal	20.48MHz	4-SMD, No Lead
402F240XXCLR	CTS晶振	402	MHz Crystal	24MHz	4-SMD, No Lead
402F250XXCLR	CTS晶振	402	MHz Crystal	25MHz	4-SMD, No Lead
402F260XXCLR	CTS晶振	402	MHz Crystal	26MHz	4-SMD, No Lead
402F270XXCLR	CTS晶振	402	MHz Crystal	27MHz	4-SMD, No Lead
402F271XXCLR	CTS晶振	402	MHz Crystal	27.12MHz	4-SMD, No Lead
402F300XXCLR	CTS晶振	402	MHz Crystal	30MHz	4-SMD, No Lead
402F307XXCLR	CTS晶振	402	MHz Crystal	30.72MHz	4-SMD, No Lead
402F320XXCLR	CTS晶振	402	MHz Crystal	32MHz	4-SMD, No Lead
402F360XXCLR	CTS晶振	402	MHz Crystal	36MHz	4-SMD, No Lead
