- 規格型號：15940313
- 頻率：25.0000M
- 尺寸：2520mm
- 產品描述：SXT22410AA48-25.000M,美國SUNTSU松圖晶振,SXT224晶振,25.000MHz頻率廣泛兼容各類MCU,通信芯片的時鐘需求,成為智能穿戴(如便攜監測設備),物聯網終端(如無線傳感器節點)的理想選擇.

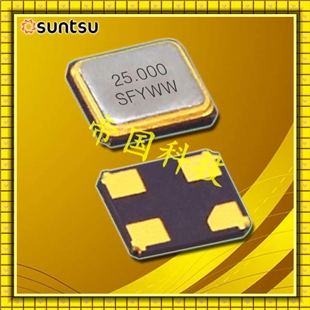

SXT22410AA48-25.000M,美國SUNTSU松圖晶振,SXT224晶振
.png)
.png)

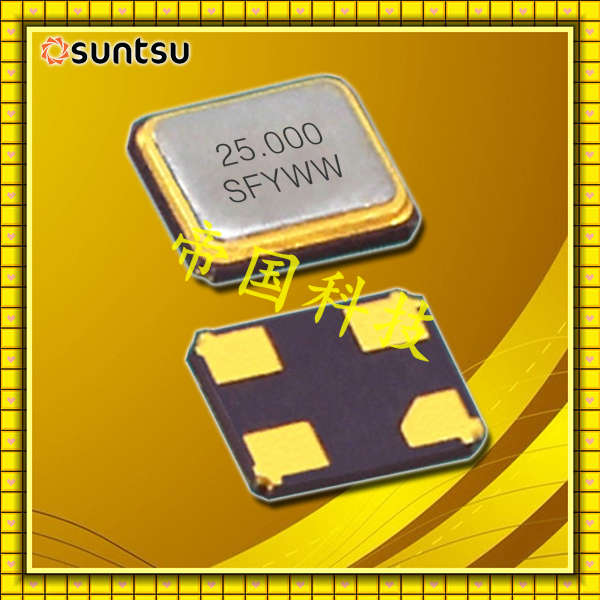

SXT22410AA48-25.000M,美國SUNTSU松圖晶振,SXT224晶振
SXT22410AA48-25.000M是美國SUNTSU(松圖)推出的高可靠性晶振,隸屬于SXT224經典系列,采用2520貼片封裝,精準輸出25.000MHz穩定頻率,為電子設備提供高精度時鐘基準.產品繼承SUNTSU嚴苛的性能標準,具備優異的頻率穩定性與環境適應性,相位噪聲低,起振快速,覆蓋消費電子,工業控制等多場景需求.依托SXT224系列成熟的設計方案,該晶振兼具低功耗與高抗干擾能力,優化了電氣匹配性能,是對時鐘精度與運行穩定性有高要求設備的優選方案,彰顯美國品牌的技術嚴謹性.
.png)
SXT22410AA48-25.000M,美國SUNTSU松圖晶振,SXT224晶振
| 原廠型號 Originalmodel： | SXT22410AA48-25.000M | 品牌brand： | SUNTSU |
| 品牌brand： | SUNTSU晶振 | 高度PackageHeight： | 0.65mm |
| 型號名稱 Modelname： | SXT224 | 溫度OperatingTemperature | -40℃~+85℃ |
| Type系列： | MHZ Crystal | 腳位Termination： | 4-Pad |
| 頻率 frequency： | 25.000M | 封裝類型PackageType： | 4-Smd |
| frequencytolerance頻率容差 | ±50ppm | 最小包裝數MPQ： | 3000 |
| Loadcapacitance 負載電容 | 10pF | Packaging 包裝 | TapeandReel |
| Size/Dimension尺寸 | 2520 mm | 安裝方式 Installation： | Surfacemount |
.png)
SXT22410AA48-25.000M,美國SUNTSU松圖晶振,SXT224晶振
SXT22410AA48-25.000M,美國SUNTSU松圖晶振,SXT224晶振
| SXT22418FE48-32.000M | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA16-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SXT22418FE48-26.000M | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-26.000MT | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576M | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT32420CC48-40.000M | Suntsu Electronics, Inc. | SXT324 | 40 MHz | ±25ppm | ±25ppm | 20pF |
| SWS61412D48-32.768K | Suntsu Electronics, Inc. | * | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-20.000MT | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000MT | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000M | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000MT | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000MT | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576MT | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA07-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SWS21212D48-32.768K | Suntsu Electronics, Inc. | SWS212 | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-27.000MT | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SWS1127D48-32.768K | Suntsu Electronics, Inc. | SWS112 | 32.768 kHz | - | ±20ppm | 7pF |
| SXT22418FE48-20.000M | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000M | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000MT | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000M | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-27.000M | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000MT | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000M | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000M | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA16-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SXT22418FE48-26.000M | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-26.000MT | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576M | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT32420CC48-40.000M | Suntsu Electronics, Inc. | SXT324 | 40 MHz | ±25ppm | ±25ppm | 20pF |
| SWS61412D48-32.768K | Suntsu Electronics, Inc. | * | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-20.000MT | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000MT | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000M | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000MT | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000MT | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576MT | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA07-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SWS21212D48-32.768K | Suntsu Electronics, Inc. | SWS212 | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-27.000MT | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SWS1127D48-32.768K | Suntsu Electronics, Inc. | SWS112 | 32.768 kHz | - | ±20ppm | 7pF |
| SXT22418FE48-20.000M | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000M | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000MT | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000M | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-27.000M | Suntsu Electronics, Inc. | SXT224 | 27 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-16.000MT | Suntsu Electronics, Inc. | SXT224 | 16 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000M | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-32.000M | Suntsu Electronics, Inc. | SXT224 | 32 MHz | ±15ppm | ±10ppm | 18pF |
| SXT1147AA16-25.000M | Suntsu Electronics, Inc. | SXT114 | 25 MHz | ±50ppm | ±50ppm | 7pF |
| SXT22418FE48-26.000M | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-26.000MT | Suntsu Electronics, Inc. | SXT224 | 26 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-24.576M | Suntsu Electronics, Inc. | SXT224 | 24.576 MHz | ±15ppm | ±10ppm | 18pF |
| SXT32420CC48-40.000M | Suntsu Electronics, Inc. | SXT324 | 40 MHz | ±25ppm | ±25ppm | 20pF |
| SWS61412D48-32.768K | Suntsu Electronics, Inc. | * | 32.768 kHz | - | ±20ppm | 12.5pF |
| SXT22418FE48-20.000MT | Suntsu Electronics, Inc. | SXT224 | 20 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000MT | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-12.000M | Suntsu Electronics, Inc. | SXT224 | 12 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-25.000MT | Suntsu Electronics, Inc. | SXT224 | 25 MHz | ±15ppm | ±10ppm | 18pF |
| SXT22418FE48-30.000MT | Suntsu Electronics, Inc. | SXT224 | 30 MHz | ±15ppm | ±10ppm | 18pF |
