規格型號：90627469
頻率：153.600KHZ
尺寸：5019MM
PDF
產品描述：CC4V-T1A-153.600KHZ-9PF-30PPM,CC4V-T1A晶振,陶瓷貼片晶振,具備超小尺寸優勢,可直接貼裝于PCB板表面,無需額外焊接空間,大幅節省電路板布局面積.減少了信號傳輸路徑損耗,增強了電路穩定性.

CC4V-T1A-153.600KHZ-9PF-30PPM,CC4V-T1A晶振,陶瓷貼片晶振
CC4V-T1A-153.600KHZ-9PF-30PPM作為一款專業陶瓷貼片晶振,頻率精準設定為153.600kHz,是電子設備低中頻時鐘信號的核心來源.負載電容嚴格控制在9pF,頻率偏差僅±30PPM,能為設備提供穩定的低頻時序基準,完美適配工業控制儀表,智能家居控制器,便攜式檢測設備等對低中頻時鐘信號有精準要求的產品,有效保障數據采集,信號處理的時序同步,避免因頻率偏差導致的設備功能異常.

CC4V-T1A-153.600KHZ-9PF-30PPM,CC4V-T1A晶振,陶瓷貼片晶振

原廠型號 Originalmodel：	CC4V-T1A-153.600KHZ-9PF-30PPM	品牌brand：	微晶

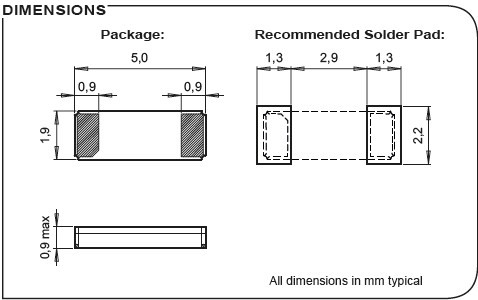

型號名稱 Modelname：	CC4V-T1A黑色面陶瓷晶振	Size/Dimension尺寸	5019mm
Type系列：	KHZ Crystal	高度PackageHeight：	0.9mm
頻率 frequency：	153.6KHZ	溫度OperatingTemperature	-40°C ~ 85°C
Frequency Stability頻率穩定度	-	腳位Termination：	2-Pad
frequencytolerance頻率容差	±30PPM	封裝類型PackageType：	2-smd
Loadcapacitance 負載電容	9pF	最小包裝數MPQ：	1000

CC4V-T1A-153.600KHZ-9PF-30PPM,CC4V-T1A晶振,陶瓷貼片晶振

MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768k-7pF-20PPM-TA-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768k-7pF-100PPM-TB-QA	Micro微晶晶振	Crystals	32.768 kHz	100 PPM
CC7V-T1A-32.768k-9pF-20PPM-TA-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC	Micro微晶晶振	Crystals	32.768 kHz	100 PPM
CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	10 PPM
CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768k-9pF-20PPM-TB-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CC7V-T1A-32.768k-7pF-20PPM-TB-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768k-7pF-20PPM-TC-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CC7V-T1A-32.768k-9pF-100PPM-TC-QA	Micro微晶晶振	Crystals	32.768 kHz	100 PPM
CM7V-T1A-32.768k-9pF-20PPM-TC-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	10 PPM
CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	100 PPM
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	100 PPM
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro微晶晶振	Crystals	100 kHz	100 PPM
CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	10 PPM
CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	10 PPM
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	10 PPM
CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
202684-MC03	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC	Micro微晶晶振	Crystals	32.768 kHz	10 PPM
202273-EA00	Micro微晶晶振	Clock Oscillators	128 MHz
MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
OV-7604-C7-32.768kHz-20PPM-TB-QC	Micro微晶晶振	Clock Oscillators	32.768 kHz
CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768k-9pF-20PPM-TA-QA	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC	Micro微晶晶振	Crystals	32.768 kHz	20 PPM
CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA	Micro微晶晶振	Crystals	32.768 kHz	10 PPM
